Progress Update - December 30, 2015

December 30, 2015 Geoff Pelletier

Happy Holidays and (almost) Happy New Year from the Klingle Valley Trail team! We wish everyone a safe, healthy and productive 2016. The new year will bring great transformation to the Klingle Valley, and we aim to have the new trail ready for opening around this time in 2016.

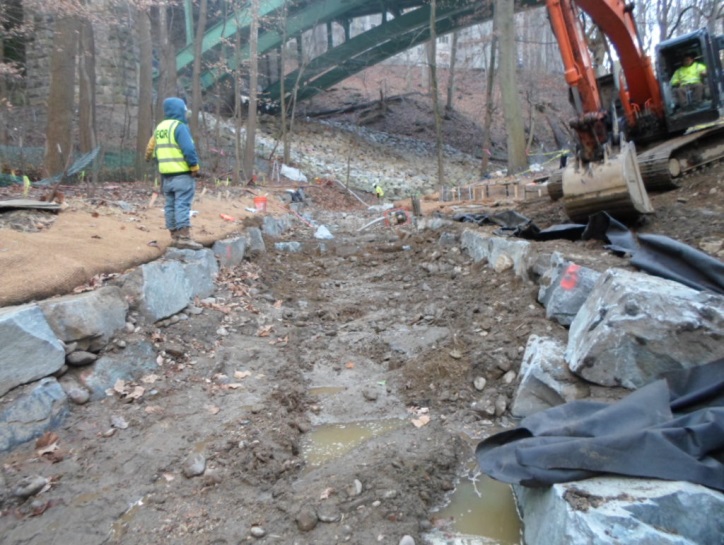

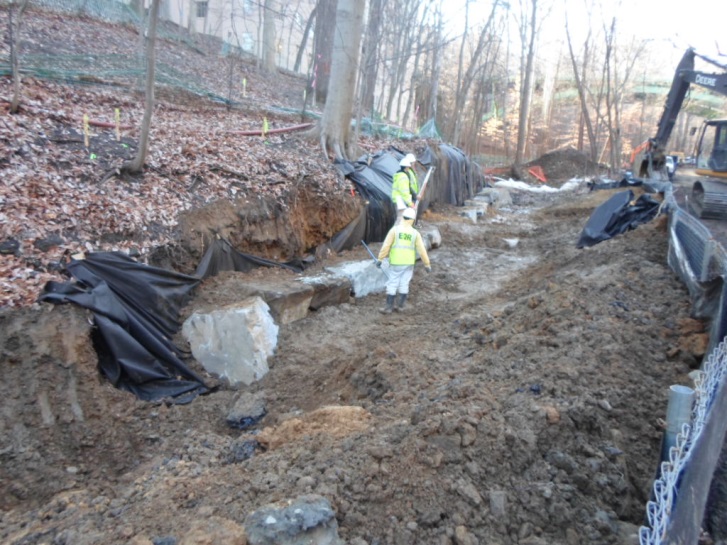

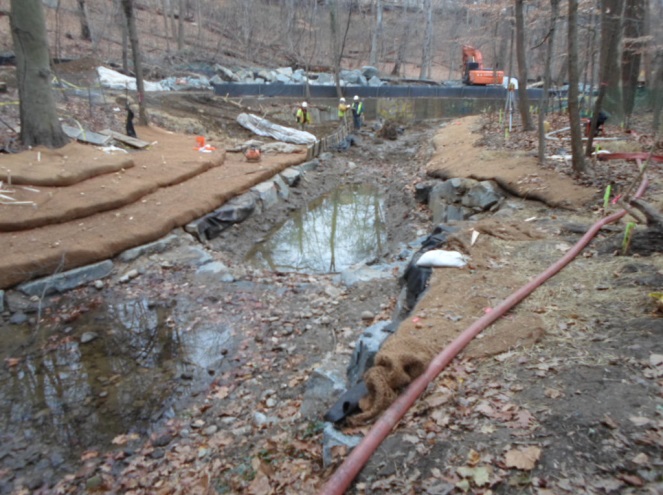

Despite the holiday and rain-shortened production weeks, the KVT contractors have been hard at work along Klingle Creek. Stream restoration east of Connecticut Avenue is moving at full steam, with two crews now at work.Both crews have been excavating the new stream channel, adding stone stream bank reinforcement, and constructing step pools.  We even installed our first log placement to create new aquatic wildlife habitat and reduce stream velocity.  The logs come from trees that were removed to accommodate the new channel and are embedded in the stream bank with the root wad submerged in the creek.

 Log placement embedded in stream bank with root wad submerged in creek.

Log placement embedded in stream bank with root wad submerged in creek.

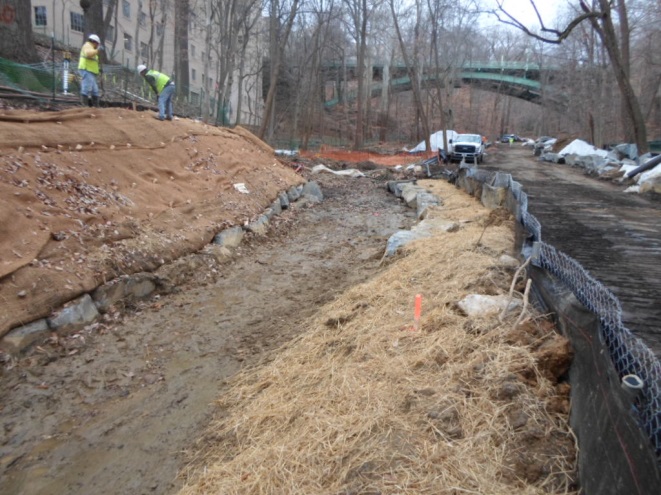

 Log placement/root wad visible in the middle of the photo on the right side

Log placement/root wad visible in the middle of the photo on the right side

4.jpg 7.jpg 8.jpg 10.jpg 11.jpg  Log placement embedded in stream bank with root wad submerged in creek.  Log placement/root wad visible in the middle of the photo on the right side

The contractor is also carefully incorporating existing drainage facilities into the stream restoration features.  A good example is a 80+ year old terracotta drain pipe that was trimmed and tied into the stone wall and step pool.


Further upstream, the prime contractor installed the concrete stem for the new retaining wall to be installed opposite the Woodley Park Towers building.  Following concrete placement, the wall was backfilled with soil and porous stone.  A perforated drain pipe runs along the back of the wall to allow the fill area to drain.  The exposed face of the wall will be built with salvaged stone from collapsed retaining walls along Klingle Creek.

 Placing fresh concrete in the wall stem formwork

Placing fresh concrete in the wall stem formwork

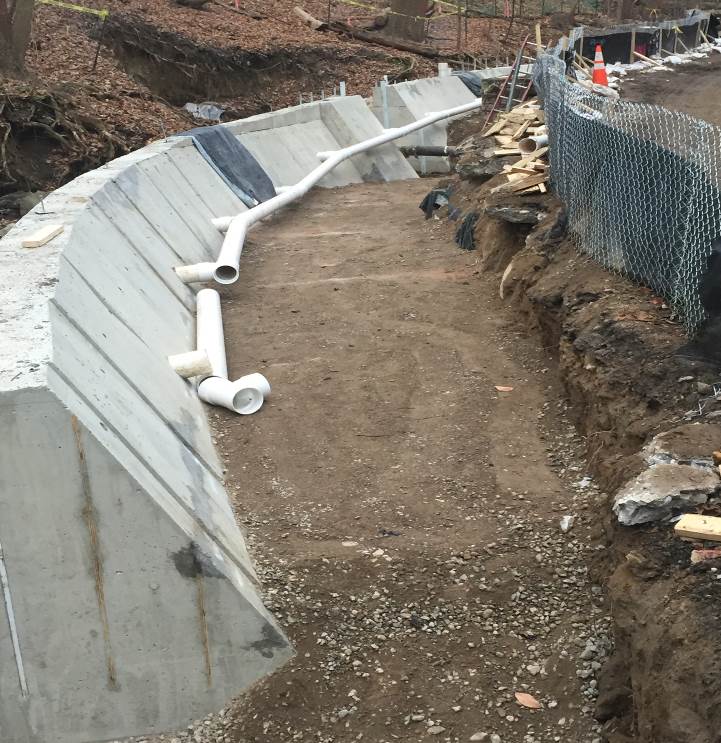

 Soil backfill installed to just below the perforated drain pipe level

Soil backfill installed to just below the perforated drain pipe level

 Porous stone backfill placed for the remaining height of the wall, encompassing the drain pipe.

Porous stone backfill placed for the remaining height of the wall, encompassing the drain pipe.

 The masonry wall facade will be constructed with stone salvaged from historic retaining walls along Klingle Creek that collapsed.

The masonry wall facade will be constructed with stone salvaged from historic retaining walls along Klingle Creek that collapsed.

 Placing fresh concrete in the wall stem formwork  Soil backfill installed to just below the perforated drain pipe level  Porous stone backfill placed for the remaining height of the wall, encompassing the drain pipe.  The masonry wall facade will be constructed with stone salvaged from historic retaining walls along Klingle Creek that collapsed. PS5-PROPOSED.jpg

Washington Gas is nearly done with Phase 1 replacement (Klingle Road between Cortland Place and Connecticut Avenue).  The line is now tied into the existing gas line and will be activated in the next few weeks once Phase 4 is complete (Cortland Place and Devonshire Place).

Tags Klingle Valley Trail, DDOT, Washington Gas, Stream Restoration, Retaining Wall, Progress Updates
